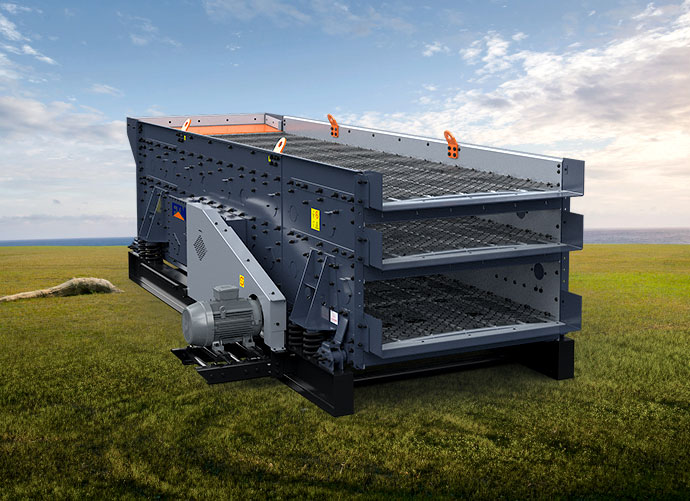

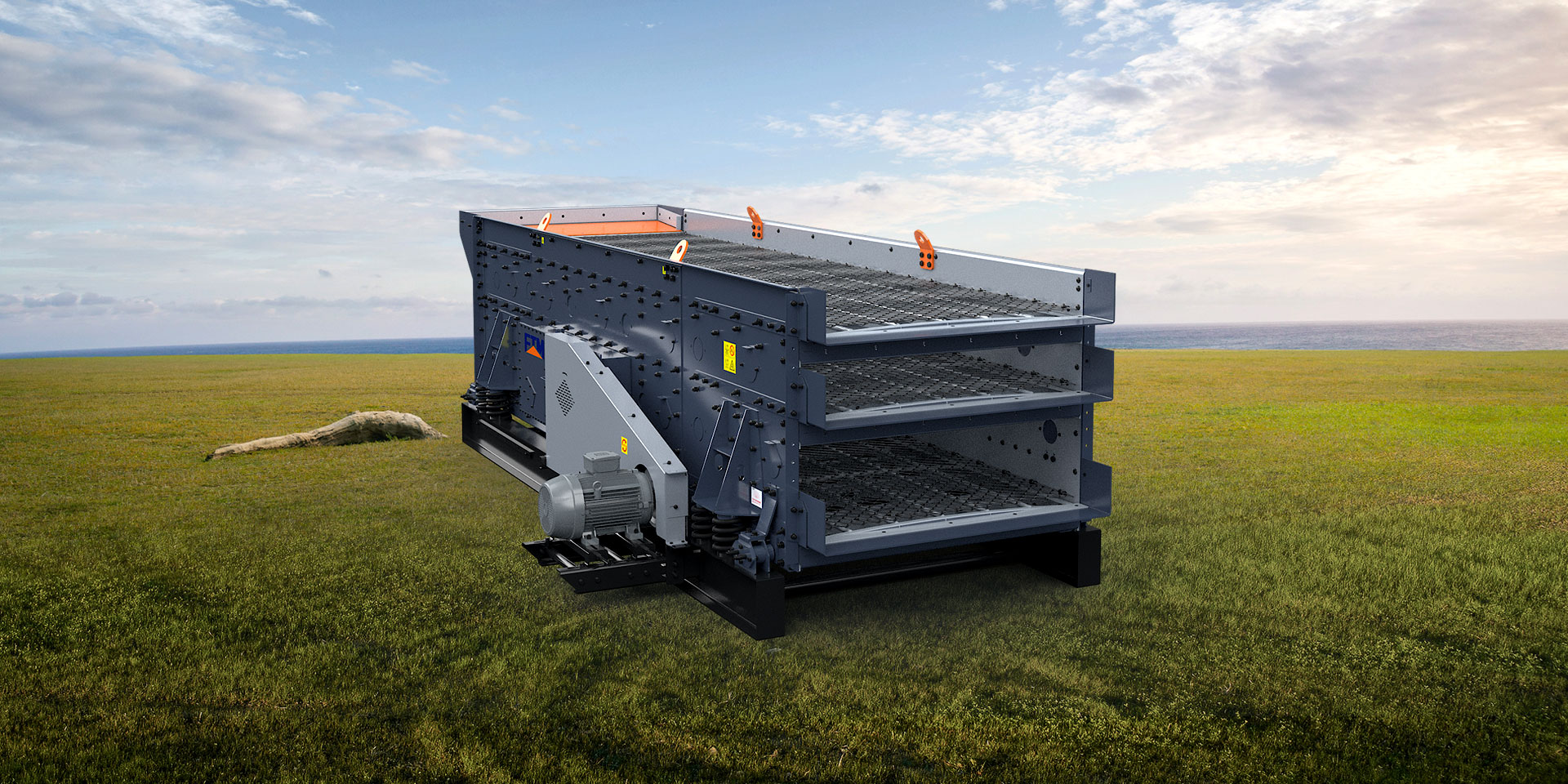

Three axis elliptical vibrating screen is a screening equipment designed and developed on the basis of circular vibrating screen and linear screen by integrating their advantages. Its motion track is elliptical, with high blocking prevention and screening accuracy. It is suitable for screening processes that require high material accuracy.
The elliptical vibration track integrates the advantages of circular vibration screen and linear vibration screen;
The three-axis vibrator is linked by chrome nickel alloy gear, and the external eccentric block is easy to adjust;
The maximum vibration intensity is 6.0G, bringing better screening effect and preventing mesh blockage;
Horizontal installation, applicable to sites with limited installation height.
| Model | Amplitude (mm) |
Rotating speed (r/min) |
Maximum feeding size (mm) |
Processing Capacity (t/h) |
Power (kw) |
| 2LH1860 | 14-18 | 645-875 | 150 | 160-320 | 30 |
| 3LH1860 | 14-18 | 645-875 | 150 | 160-320 | 30 |
| 2LH2060 | 14-18 | 645-875 | 150 | 200-385 | 30 |
| 3LH2060 | 14-18 | 645-875 | 150 | 200-385 | 30 |
| 2LH2460 | 14-18 | 645-875 | 150 | 240-462 | 37 |
| 3LH2460 | 14-18 | 645-875 | 150 | 240-462 | 37 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Rotating speed (r/min) |
Processing Capacity (t/h) |
Power (kw) |
| 2LH1860 | 645-875 | 160-320 | 30 |
| 3LH1860 | 645-875 | 160-320 | 30 |
| 2LH2060 | 645-875 | 200-385 | 30 |
| 3LH2060 | 645-875 | 200-385 | 30 |
| 2LH2460 | 645-875 | 240-462 | 37 |
| 3LH2460 | 645-875 | 240-462 | 37 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
